Factory Outlet Manufacturers Direct Selling Transformer On Load Tap Voltage Switch Tester

Name: Factory Outlet Manufacturers Direct Selling Transformer On Load Tap Voltage Switch Tester
Brand: GDZX
Price: 4295.00 USD

Brand Name : GDZX

Model Number : ZXYZ-2012

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Set

Price : USD$4295.00 - $9500.00 / Sets

Payment Terms : L/C, T/T

Supply Ability : 1200 Sets/Year

Delivery Time : 8-15 working days

Packaging Details : Packed in wooden case or carton

Product name : Transformer On Load Tap Changer Tester

Product Name : Transformer loading tap switch tester

Working power : AC220V ± 10%, 50Hz ± 10%

Measurement range of transition resistance : 1A gear: 0.4 Ω~20 Ω; 0.2A gear: 10 Ω~100 Ω;

Three phase constant current source charging, charging current : 3A/1A; 0.6A/0.2A gear;

Maximum range of transition resistance : 100 Ω;

Environmental conditions : -10 ~ 40 ℃; <85%RH;

Size and weight : 52*41*41cm; 20kg

Contact Now

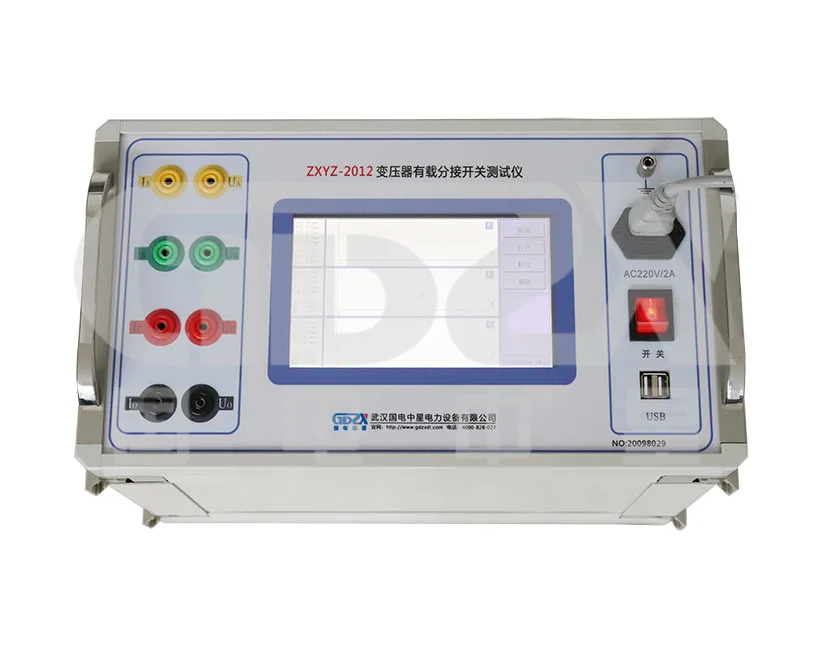

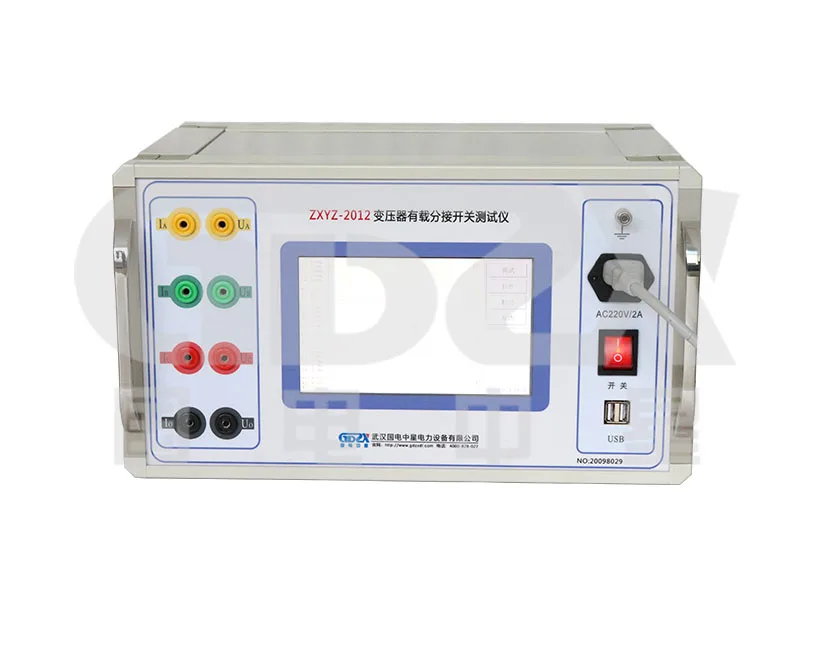

ZXYZ-2012 Transformer On Load Tap Changer Tester

Introduction

ZXYZ-2012 Transformer On Load Tap Changer Tester is designed according to the high voltage test equipment of the power industry standard of the people's Republic of China, and the general technical conditions DL/T846 and 8-2004. It can meet the requirements of "code for handover and preventive test of power equipment", which requires to check the action sequence of on load tap changer and measure the switching time. It can measure the transition time, transition waveform, transition resistance, three-phase synchronism and other parameters of on load tap changer. It is an ideal equipment for testing on load tap changer.

Features

1. Test Y0 Y △ transformer, and the resistance value is displayed directly without conversion.

2. Data analysis is humanized, which can automatically find out the fault in the middle of the waveform and mark it.

3. The waveform display is to automatically adjust the resistance value and time amplitude according to the sampled data.

4. △ type transformer can display three-phase synchronism.

5. It can be tested with or without windings.

6. The four terminal wiring mode provides high-precision resistance measurement without wire compensation.

7. Continuous test can be carried out during the test to save the time of transformer power failure.

8. The instrument can generate word report, which is convenient for data management and query.

9. The instrument is controlled by a small computer with an external configuration of 800 × 480 color LCD touch screen, high-speed printer, support external mouse, easy to operate.

10. The instrument can automatically save 1000 groups of data internally or externally connected to a USB flash disk.

Technical Indicators

1.Three phase constant current source charging, charging current:	3A/1A; 0.6A/0.2A gear;
2. Maximum port voltage:	24V;
3. Maximum range of transition resistance:	100 Ω;
4. Measurement range of transition resistance:	1A gear: 0.4 Ω~20 Ω; 0.2A gear: 10 Ω~100 Ω;
5. Waveform recording time length:	300ms;
6. Sampling rate:	30K;
7. Time resolution:	0.1ms;
8. Resistance resolution:	0.1 Ω;
9. Accuracy:	1) Transition resistance: ± 5% reading ± 0.1 Ω; 2) Transition time: ± 0.5% reading ± 0.2mS;
10. Environmental conditions:	1) Ambient temperature: -10 ~ 40 ℃; 2) Relative humidity: <85%RH;
11.Size and weight:	524141cm; 20kg

Factory Outlet Manufacturers Direct Selling Transformer On Load Tap Voltage Switch Tester

Packaging & Shipping

Factory Outlet Manufacturers Direct Selling Transformer On Load Tap Voltage Switch Tester

Factory Outlet Transformer Tester

Factory Outlet Manufacturers Direct Selling Transformer On Load Tap Voltage Switch Tester Images
